A.G. Franz, LLC

PLATH Products

Plath GmbH

PLATH GmbH offers solutions for Communications Intelligence (COMINT) and Electronic Warfare Support Measures (C-ESM). The portfolio covers the entire intelligence cycle from sensors to knowledge, including signal detection, analysis and processing as well as evaluation and visualization of mass data. In addition to complete intelligence solutions PLATH designs, manufactures and supplies leading edge HF, VHF and UHF receivers for the most demanding signal gathering applications.

Whitepaper: Multipath Propagation in V/UHF Direction Finding Systems

A.G. Franz, LLC provides the following products:

SIR 5110

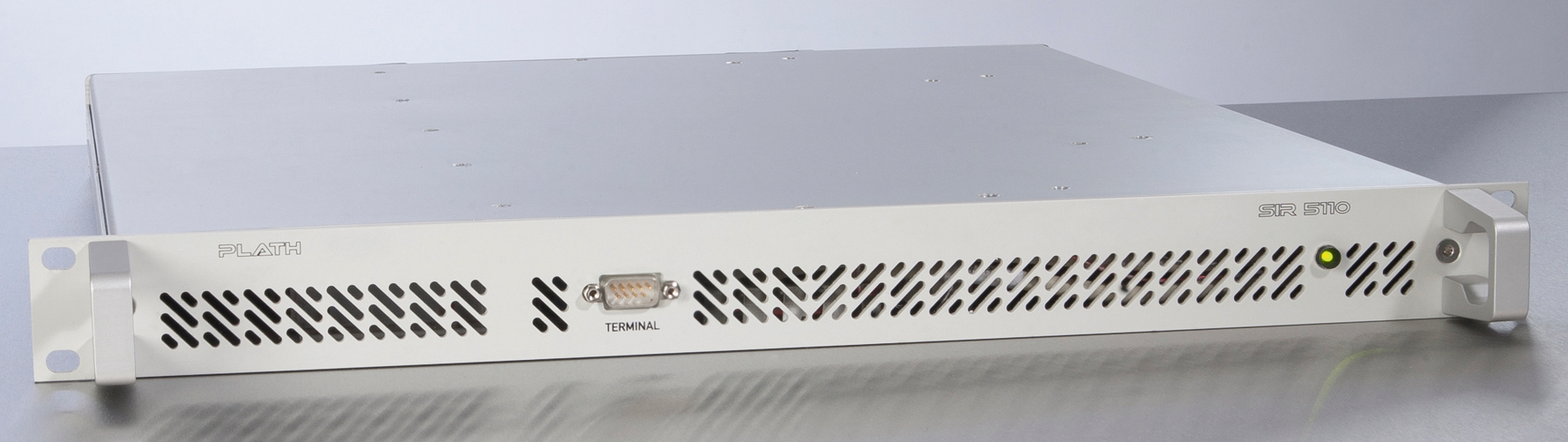

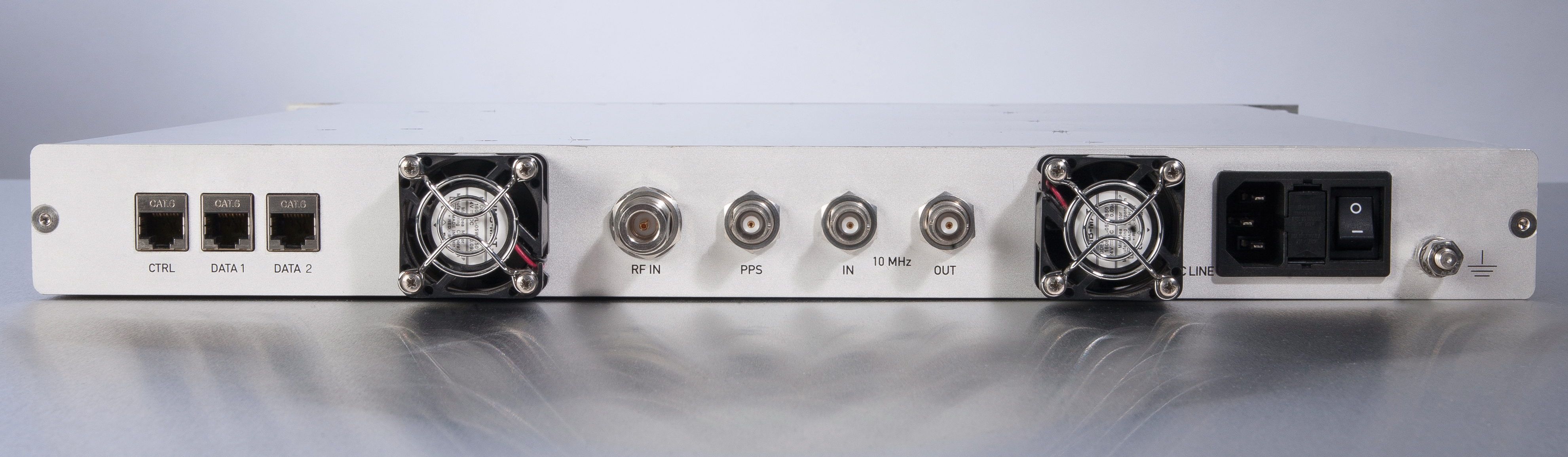

SIR 5110 front SIR 5110 back

The multi-channel HF broadband 1RU Receiver covers the full frequency range from 0.5 – 30 MHz. The flexible sub-band concept supports up to 120 virtual narrowband receivers, and up to 16 wideband IQ streamers of 768 kHz bandwidth each

SIR 5115

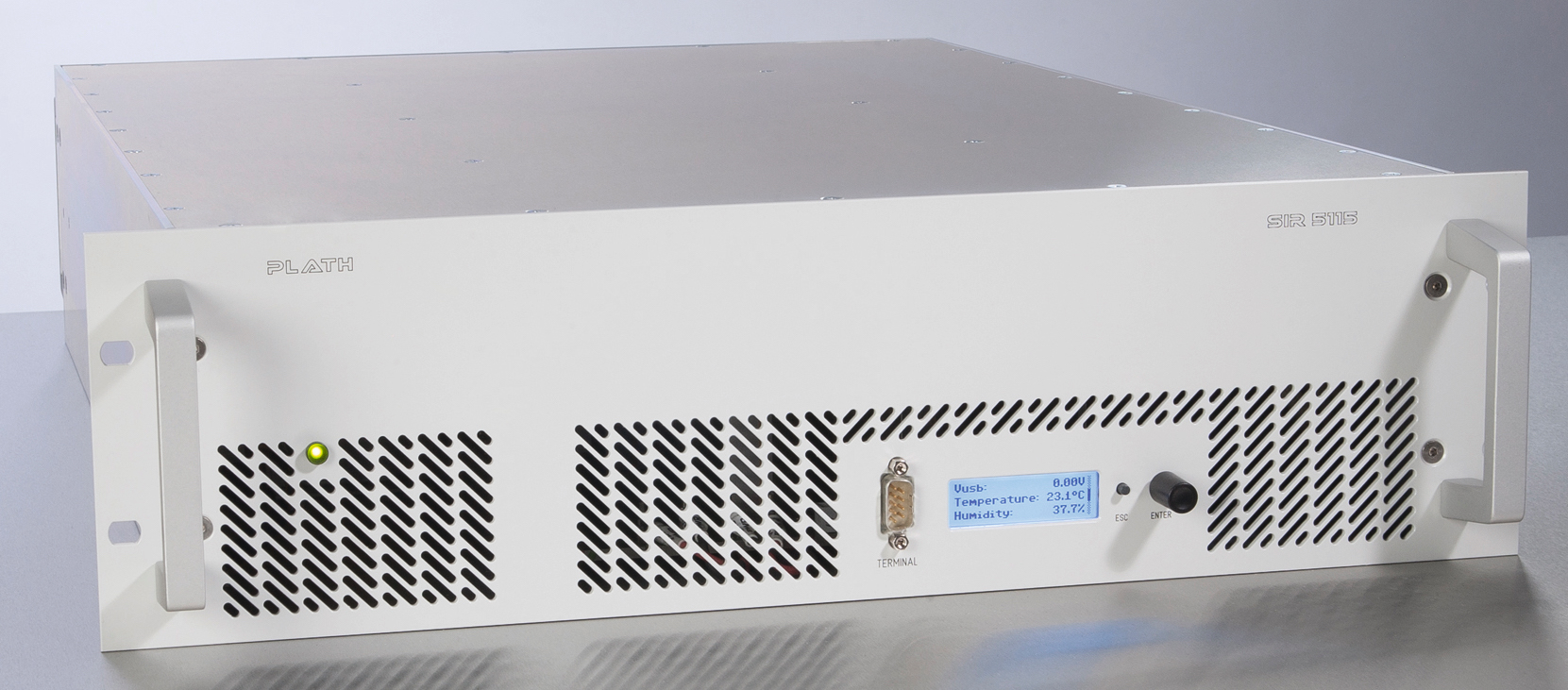

SIR 5115 front

The multi-channel HF digital broadband 3RU Receiver System covers the full frequency range from 0.5 – 30 MHz. It intercepts even the weakest signals simultaneously in the complete HF range. With up to 5 independent inputs it can intercept up to 40 wideband and 600 narrowband signals.

SIR 2115

SIR 2115 front

The multi-channel VLF to UHF (9 kHz - 3 GHz, optionally 6 GHz) 1RU receiver with a fast scan speed of 100 GHz/sec allows broadband I/Q data acquisition of 80 MHz wide signals, and includes up to 20 virtual narrowband (50/100/200/400 kHz) receivers for signal interception.

SIR 2110

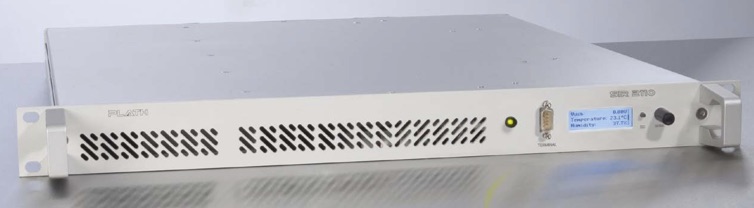

SIR 2110 front

The multi-channel VHF/UHF broadband 1RU Receiver covers the full frequency range from 20 – 3000 MHz. The flexible sub-band concept supports a 20 MHz wideband IQ streamer and up to 20 virtual narrowband receivers of 50 kHz each.

ASM 4221

HF antenna switch matrix

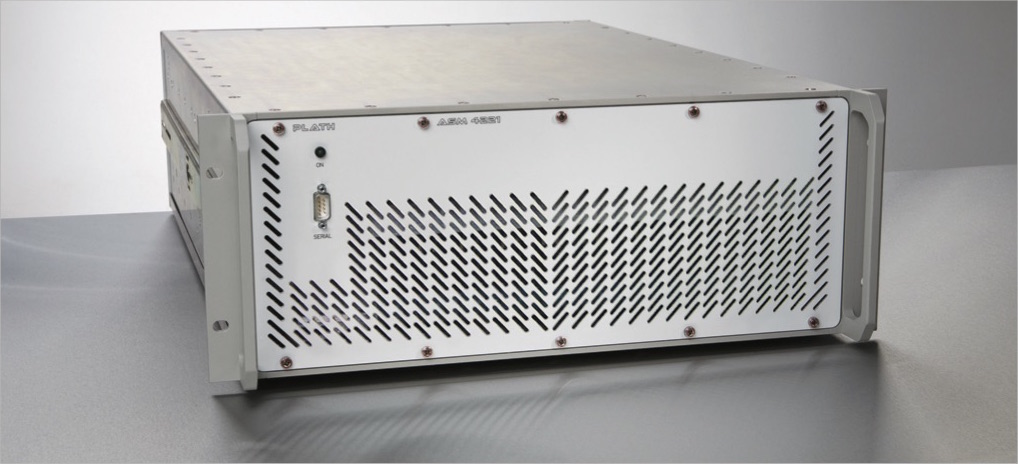

ASM 4221

The ASM 4221 is an antenna switch matrix for the frequency range from 1 to 30 MHz. Thanks to its non-blocking circuitry several outputs can be connected to one input. Thereby, the signal path is loss-free.

For more information about the ASM please contact us.

FAA 321

Active HF Ferrite Antenna
FAA 321

The FAA 321 is an active ferrite antenna, which can be used while moving. It features high bearing accuracy for ground waves within the frequency range from 0.5 to 30 MHz.

Articles

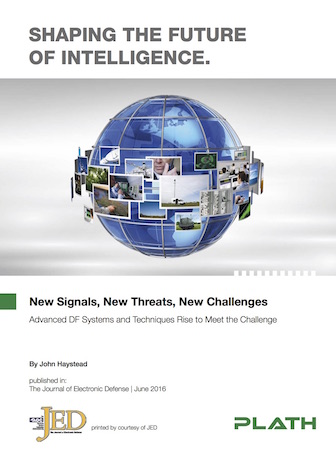

New Signals, New Threats, New Challenges

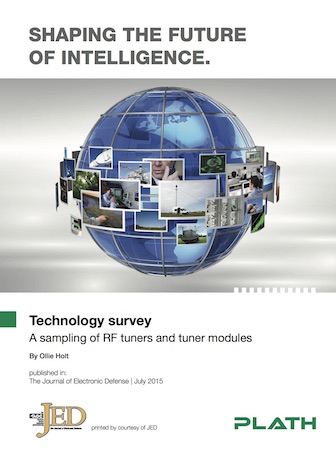

Technology survey

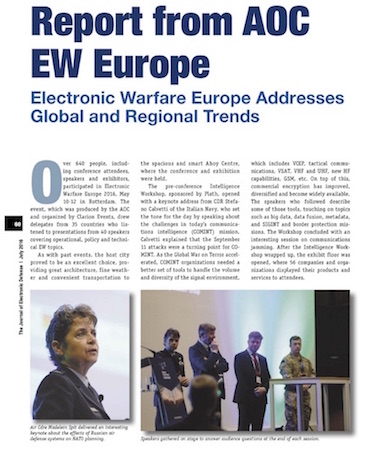

AOC Europe Intelligence Workshop
